Flat Top Trailers
Flat Top Trailers
If you’re in the market for a flat bed trailer, then we’ve got you covered. Designed and manufactured in Australia for Australian conditions, our high-quality flat bed trailers are some of the finest around, with each one being made to the highest possible standard. With over 10 years of experience in the industry and a team who will do just about anything to ensure your satisfaction, it is safe to say that you won’t find anyone who can provide you with a flat bed trailers as reliable as ours.
Our Flat Top Trailers Models

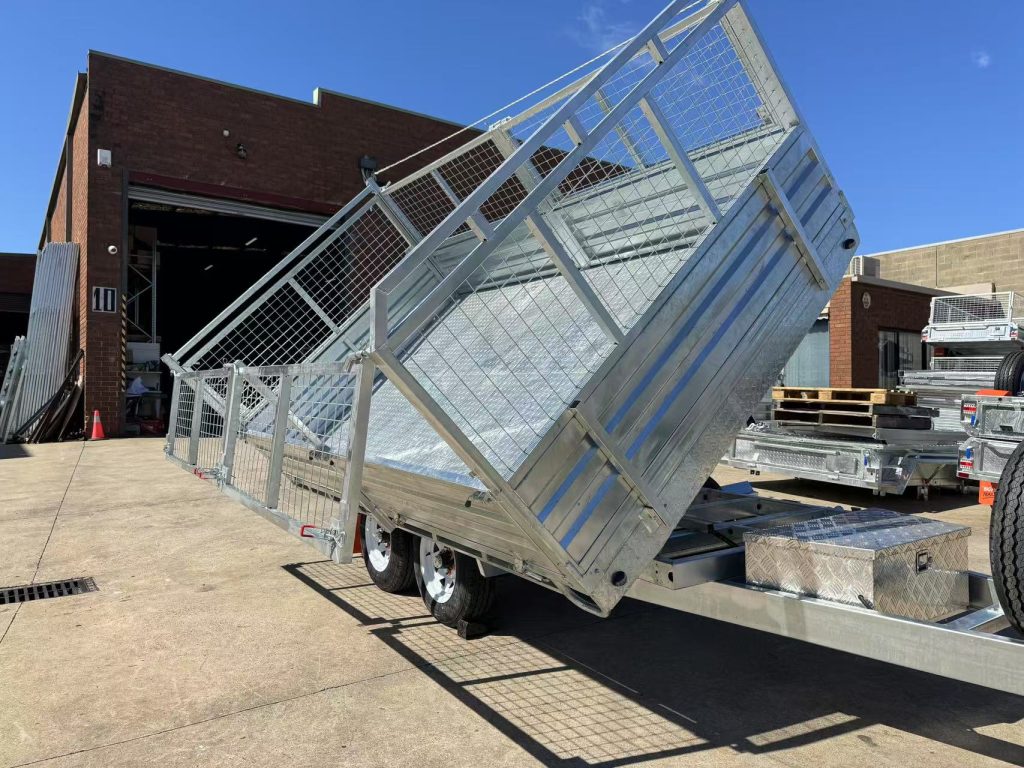

FT1273WT
Information:
12×7 3-Way Tipper Trailer
The 12×7 3-way tipper trailer delivers power, durability, and efficiency for heavy-duty hauling. Engineered for versatility, this trailer features a fully welded, hot-dipped galvanised steel frame, ensuring maximum strength and corrosion resistance. Its hydraulic 3-way tipping system makes unloading effortless, saving time and effort on demanding jobs. Built for reliability, it boasts a 3500kg ATM, 12-inch electric drum brakes on all four wheels, and a fitted breakaway unit for superior safety. The removable 450mm sides and 600mm cage add to its practicality, while the 15” Sunraysia rims with light truck tyres provide stability on any terrain. Complete with a checker plate floor, 2100mm drawbar, and a 2000mm loading ramp, this flat top tipper trailer is built to handle the toughest loads with ease.
Options :
- Full body hot dipped galvanised (including inside rail)
- 24 months structural warranty
- Free Heavy Duty jockey wheel
- Brand new 15” Sunraysia rim and 195 light truck tyre
- Removable 450mm side and 600mm cage
- Fully weld body
- 3500KG ATM with 12-inch electric drum brakes on 4 wheels
- Breakaway unit fitted
- Checker plate floor
- 2100mm long drawbar
- 2000mm long 300mm wide loading ramp included (1000KG Max. load for a pair)
- Wheel nuts indicator included
Specifications :
| Item Number | FT1273WT |
| Trailer Size | 12’ x 7’ |
| Drawbar | 150x50x4mm |
| Internal Size | 3600mm X 2100mm |
| Surface Finish | Hot Dipped Galvanised |
| Colour | Silver |
| Lights | LED ADR Light |
| Axle | 60mm Solid |
| ATM | 3500kg |
| Tare Mass | 1480kg |
| Jockey Wheel | 10” Swivel |
| Fully Weld | Yes |
| Checker Plate | 2.5mm |
| Tilt body | 5 stage ram with 5000KG lifting capacity |
| Side | 450mm 2.5mm Removable |
| Suspension | 9 leaf rocker roller |
| Cross Beam | 70x50x3mm |
| Wheel & Tyre | 195R15C Light Truck |
| Brake | 12 inch Electric Drum Brake |
| Warranty | 24 Months Structural |
| Extra | 2000mmx300mm loading ramp (1000KG Max. load) |

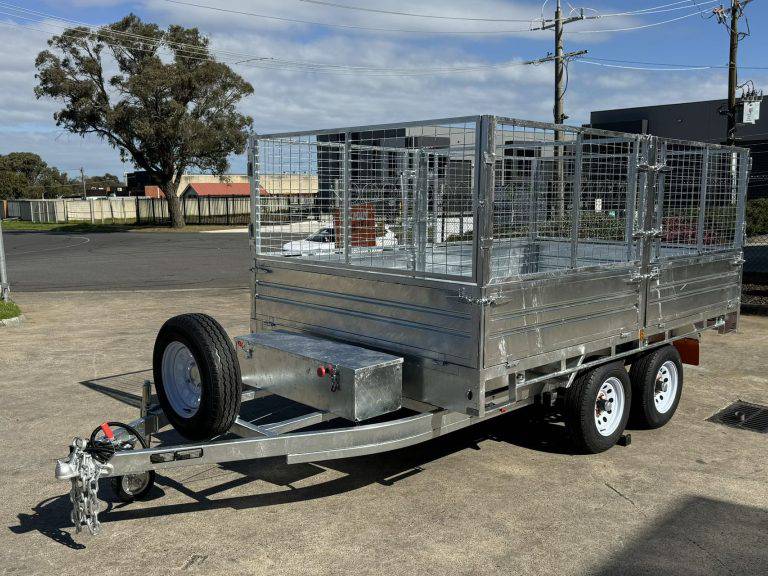

FT127HT
Information:
12×7 Tipper Trailer
Discover the prowess of our 12×7 tipper trailer, a marvel in trailer technology. Engineered to perfection, this trailer features a fully welded, hot-dipped galvanised steel frame that can hold up to the elements and the rigours of working life. With a powerful hydraulic arm, you can save your back and your time and make unloading easy. Plus, with 12-inch electric drum brakes and a breakaway unit fitted, you can rest assured that your load is safe, stable and secure. Backed by our 24-month structural warranty, the only question left to ask about this trailer is why you haven’t picked one up yet?
Options :
- Full body hot dipped galvanised (including inside rail)
- 24 months structural warranty
- Free Heavy Duty jockey wheel
- Brand new 15” Sunraysia rim and 195 light truck tyre
- Removable 450mm side and 900mm cage
- Fully weld body
- 3500KG ATM with 12-inch electric drum brakes on 4 wheels
- Breakaway unit fitted
- Checker plate floor
- 1800mm long drawbar
- 2170mm long 355mm wide loading ramp included (1000KG Max. load for a pair)
- Wheel nuts indicator included
Specifications :
| Item Number | FTHT127 |
| Trailer Size | 12’ x 7’ |
| Drawbar | 100x50x5mm |
| Internal Size | 3660mm x 2110mm |
| Surface Finish | Hot Dipped Galvanised |
| Colour | Silver |
| Lights | LED ADR Light |
| Axle | 60mm Solid |
| ATM | 3500kg |
| Tare Mass | 1770kg |
| Jockey Wheel | 10” Swivel |
| Fully Weld | Yes |
| Checker Plate | Full 2.5mm |
| Tilt body | 4 stage ram with 4000KG lifting capacity |
| Side | 450mm 2.5mm Removable |
| Suspension | 9 leaf rocker roller |
| Cross Beam | 70x50x5mm |
| Wheel & Tyre | 195R15C Light Truck |
| Brake | 12 inch Electric Drum Brake |
| Warranty | 24 Months Structural |
| Extra | 2170mmx355mm loading ramp (1000KG Max. load) |

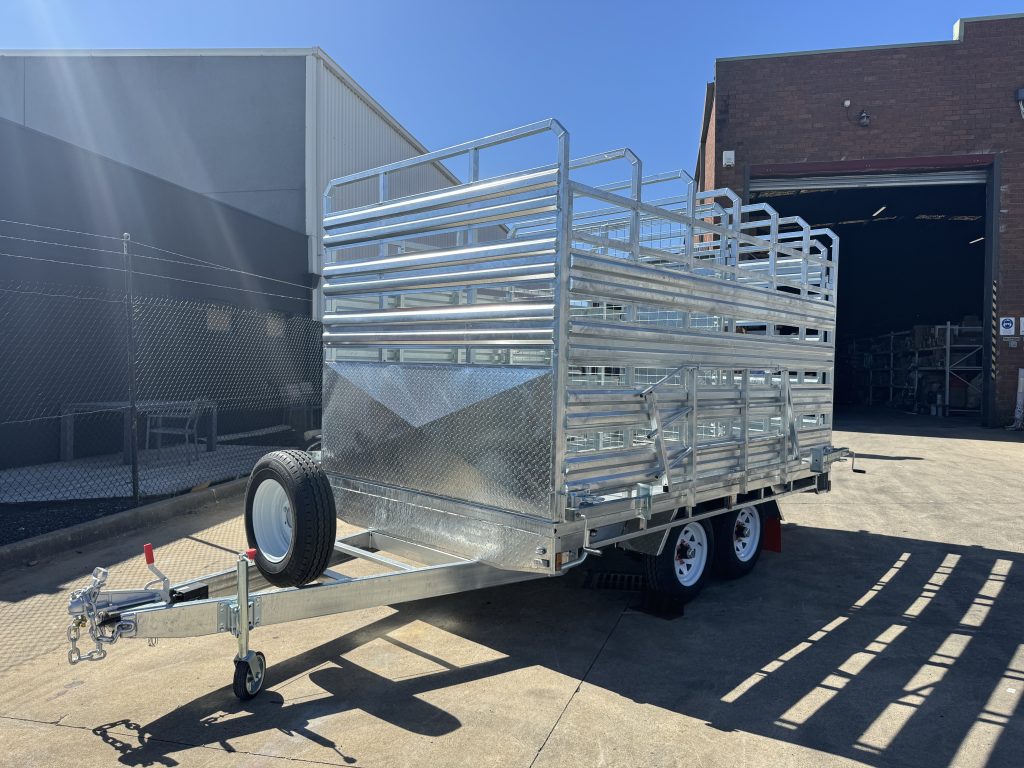

FT127CT
Information:
12×7 Cattle Crate Trailer
The 12×7 Cattle Crate Trailer is built to transport livestock safely and securely. Designed for durability, it features a fully welded, hot-dipped galvanised steel frame, providing superior resistance against wear and corrosion. With a 3500kg ATM, electric drum brakes, and a fitted breakaway unit, it ensures stability and peace of mind when hauling heavy loads. The removable cattle crate allows for quick conversion into a standard flatbed, offering unmatched versatility for farmers and transporters. A 3-way open back door and centre divider streamline livestock handling, while the 15” Sunraysia rims with 195 light truck tyres ensure reliable performance on rugged terrain. Finished with a checker plate floor, 1800mm drawbar, and heavy-duty corner legs, this cattle crate trailer is the ideal choice for safe and efficient livestock transport.
Options :
- A full body hot-dipped galvanized finish (including inside the rail)
- A 24-month structural warranty
- A heavy-duty jockey wheel
- Brand new 15” Sunraysia rims and 195 light truck tyre
- A removable cattle crate
- A fully-welded body
- 3500kg ATM with electric drum brake
- A checker plate floor
- A 3-way open back door
- An included center divider
- A fitted breakaway unit
- 7-pin flat plug
- 1800mm drawbar
- Wheel nuts indicator included
- 4 heavy duty corner legs are included
- Ramp rails included
Specifications :
| Item Number | FT127CT |
| Trailer Size | 12’ x 7’ |
| Drawbar | 150x50x4mm |
| Internal Size | 3600mm x 2100mm |
| Surface Finish | Hot Dipped Galvanised |
| Colour | Silver |
| Lights | LED ADR Light |
| Axle | 60mm Solid axle |
| ATM | 3500kg |
| Tare Mass | 1300kg |
| Jockey Wheel | 10” Swivel |
| Fully Weld | Yes |
| Checker Plate | Full 2.5mm |
| Tilt body | No |
| Cage | 2000mm high removable cattle crate |
| Suspension | 9 leaf rocker roller |
| Cross Beam | 70x50x3mm |
| Wheel & Tyre | 195R15C Light Truck |
| Brake | 12 inch electric drum brakes |
| Warranty | 24 Months Structural |

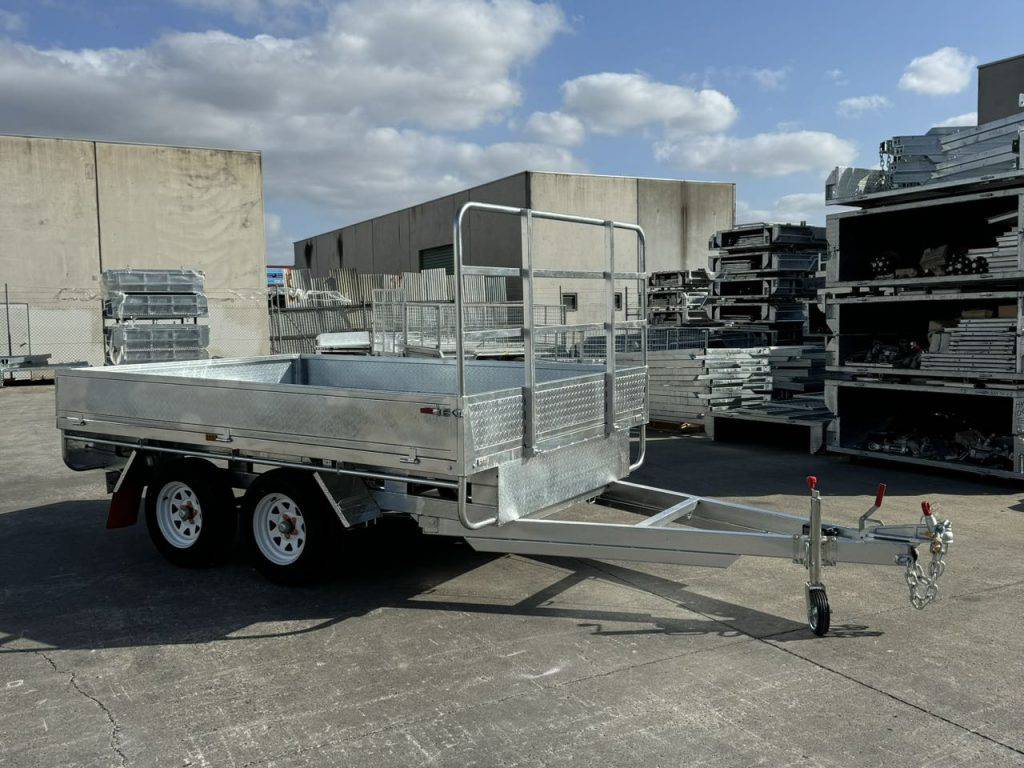

FT107E
Information:
10×7 Flat Top Tandem Trailer
Versatility and good design meet in the 10×7 Flat Top Tandem Trailer. Engineered to aid in transporting oversized materials, it conveniently opens on all four sides for hassle-free loading. With an ATM of 2800KG and electric drum brakes on every wheel, this trailer promises reliability and safety at all times. Fully hot-dipped galvanised including inside the rail, it resists wear and tear from challenging conditions and weather, ensuring years of dependable performance. The robust build is accentuated with a fully welded body, and a brand new 14” Sunraysia rim paired with a light truck tyre. With removable 300mm sides, an 1800mm drawbar, and a checker plate floor, it’s prepared for heavy-duty assignments and backed by our signature 24-month structural warranty.
Options :
- Full body hot-dipped galvanised (include inside the rail)
- 24 months structural warranty
- Free jockey wheel
- Brand new 14” Sunraysia rim and light truck tyre
- Removable 300mm side
- Fully weld body
- 2800KG ATM with electric drum brakes on 4 wheels
- Checker plate floor
- 1800mm drawbar
- Wheel nuts indicator included
Specifications :
| Item Number | FT107E |
| Trailer Size | 10’ x 7’ |
| Drawbar | 100x50x4mm |
| Internal Size | 3030mm x 2120mm |
| Surface Finish | Hot Dipped Galvanised |
| Colour | Silver |
| Lights | LED ADR Light |
| Axle | 50mm Solid |
| ATM | 2800kg |
| Tare Mass | 850kg |
| Jockey Wheel | 8” Swivel |
| Fully Weld | Yes |
| Checker Plate | Full 2.5mm |
| Tilt body | No |
| Side | 300mm 2.5mm Removable |
| Suspension | 7 leaf rocker roller |
| Cross Beam | 70x50x3mm |
| Wheel & Tyre | 185R14C Light Truck |
| Brake | Electric Drum Brake |
| Warranty | 24 Months Structural |

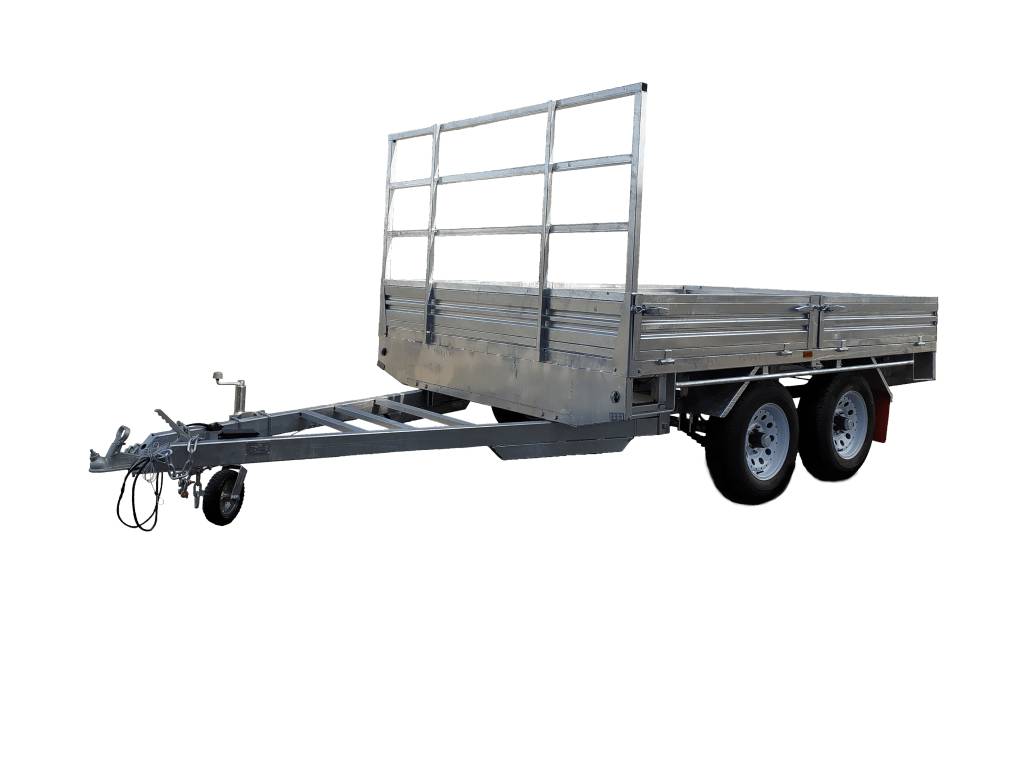

FT107E35
Information:
3500kg Flat Top Trailer
This 3500kg Flat Top Trailer is an embodiment of design precision, offering a spacious flat platform that opens from all four sides, simplifying the transport of bulky items. Prioritizing both utility and safety, it features electric drum brakes on all wheels and a massive 3500KG ATM. Durability is unmatched with a fully welded and hot-dipped galvanised body and brand new 15” Sunraysia rims with 195 light truck tyres. It includes an 1800mm long drawbar, a removable 300mm side, and a resilient checker plate floor to withstand the challenges of working life. A convenient 2170mm long, 355mm wide ramp with a 1000kg maximum load capacity ensures easy loading and unloading and added safety and peace of mind are provided by a breakaway unit and a 24-month structural warranty.
Options :
- Full body hot dipped galvanised (including inside the Rail)
- 24 months structural warranty
- Free Heavy Duty jockey wheel
- Brand new 15” Sunraysia rim and 195 light truck tyre
- Removable 300mm side
- Fully weld body
- 3500KG ATM with 12-inch electric drum brakes on 4 wheels
- Breakaway unit fitted
- Checker plate floor
- 1800mm long drawbar
- 2170mm long 355mm wide loading ramp included (1000KG Max. load for a pair)
- Wheel nuts indicator included
Specifications :
| Item Number | FT107E35 |
| Trailer Size | 10’ x 7’ |
| Drawbar | 100x50x3mm |
| Internal Size | 3030mm x 2120mm |
| Surface Finish | Hot Dipped Galvanised |
| Colour | Silver |
| Lights | LED ADR Light |
| Axle | 50mm Solid |
| ATM | 3500kg |
| Tare Mass | 900kg |
| Jockey Wheel | 10” Swivel |
| Fully Weld | Yes |
| Checker Plate | Full 2.5mm |
| Tilt body | No |
| Side | 300mm 2.5mm Removable |
| Suspension | 9 leaf rocker roller |
| Cross Beam | 50x50x3mm |
| Wheel & Tyre | 195R15C Light Truck |
| Brake | 12 inch Electric Drum Brake |
| Warranty | 24 Months Structural |
| Extra | 2170mmx355mm loading ramp (1000KG Max. load) |
FT12735
Information:
12×7 Flat Top Trailer
Experience the sheer power of the 12×7 flat top trailer. Merging the benefits of two trailers, this behemoth eases loading with its full flat design, opening from all four sides. With a robust 3500kg ATM, electric drum brakes on all four wheels, and a fully welded body, it stands unparalleled in its strength and sturdiness. Hot dipped galvanisation encompasses the entire body, including inside the rail, ensuring longevity. It’s further enhanced with an 1800mm drawbar, checker plate floor, removable 300mm side, and brand new 15” Sunraysia rims with light truck tyres. The 2000mm long, 300mm wide ramp makes loading a breeze, supporting up to 1000kg for a pair.
Options :
- Full body hot dipped galvanised (include inside the rail)
- 24 months structural warranty
- Free Heavy Duty jockey wheel
- Brand new 15” Sunraysia rim and 195 light truck tyre
- Removable 300mm side
- Fully weld body
- 3500KG ATM with 12-inch electric drum brakes on 4 wheels
- Breakaway unit fitted
- Checker plate floor
- 1800mm long drawbar
- 2000mm long 300mm wide loading ramp included (1000KG max. load for a pair)
- Wheel nuts indicator included
Specifications :
| Item Number | FT12735 |
| Trailer Size | 12’ x 7’ |
| Drawbar | 150x50x4mm |
| Internal Size | 3600mm x 2100mm |
| Surface Finish | Hot Dipped Galvanised |
| Colour | Silver |
| Lights | LED ADR Light |
| Axle | 60mm Solid |
| ATM | 3500kg |
| Tare Mass | 1110kg |
| Jockey Wheel | 10” Swivel |
| Fully Weld | Yes |
| Checker Plate | Full 2.5mm |
| Tilt body | No |
| Side | 300mm 2.5mm Removable with 900mm Cage |
| Suspension | 9 leaf rocker roller |
| Cross Beam | 70x50x3mm |
| Wheel & Tyre | 195R15C Light Truck |
| Brake | 12 inch Electric Drum Brake |
| Warranty | 24 Months Structural |
| Extra | 2000mmx300mm loading ramp (1000KG Max. load) |
All Warrnambool Trailers Flat Top Trailers Come With:
Full body hot dipped galvanised coating (incl. inside rail)
Between 12 and 24 months’ warranty
Free jockey wheel
Brand new Sunraysia rims and light truck tyre
Fully welded body
Checker plate floor
Optional Flat Top Trailers Extras:
Light Truck Spare Wheel
VIC 12 months Registration
At Warrnambool Trailers, we understand that every customer’s needs are different. Get in touch with us for a quote and to check current availability — our experienced team will help you find the right trailer to suit your requirements.
