Single Axle Trailers
Single Axle Trailers
Whether you’re hauling out garden waste or shifting furniture, single axle trailers are well-suited to those small jobs where a car just won’t cut it. We offer a wide range of single axle trailers that are perfect for home and commercial use.
Versatile and easy to use, our single-axle trailers are made from premium hot-dipped galvanised steel, ensuring they are durable and built to last. All of our single axle trailers are box trailers available in sizes ranging from 6x4ft to 8x5ft, with a maximum weight rating of 750kg.
If you’re in need of a trailer for camping, gardening, transporting equipment, or something more, we have a single-axle trailer that will meet your needs. Browse our selection below to find an option that’s right for your home or business.
Our Single Axle Trailers Models

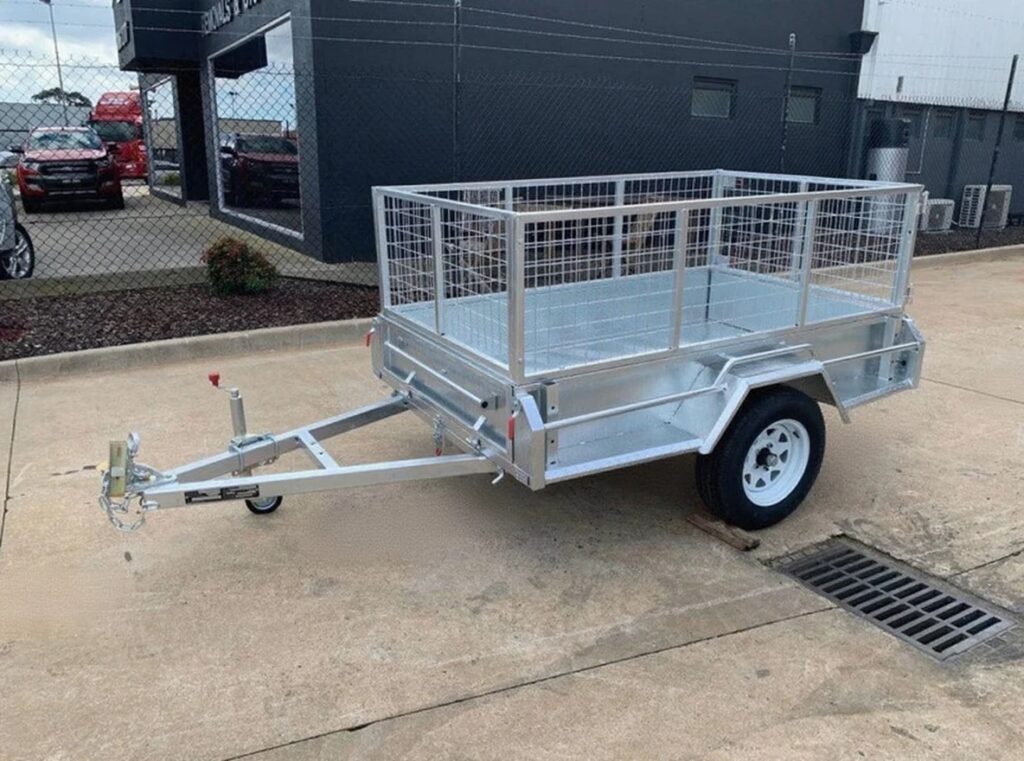

BT64M
Information:
6×4 Cage Trailer
The 6×4 Cage Trailer is one of our standout models. Designed for tasks such as rubbish dumping and furniture removal, this 6×4 single-axle trailer offers both smooth towing and compact storage. Ideal for those seeking an entry-level trailer, its galvanised make ensures durability. With features including a 24-month structural warranty, full body hot dipped galvanisation, and a removable 600mm cage, it’s a best-seller for good reason and the perfect starter trailer for business owners and home users alike.
Options :
- Full body hot dipped galvanised (include inside the rail)
- 24 months structural warranty
- Free jockey wheel
- Brand new 14″ Sunraysia rim and light truck tyre
- Removable 600mm cage
- Fully weld body
- Front & rear doors open
- Checker plate floor
- 1200mm drawbar
- Wheel nuts indicator included
Specifications :
| Item Number | BT64M |
| Trailer Size | 6’ x 4’ |
| Drawbar | 70x50x3mm |
| Internal Size | 1760mm x 1210mm |
| Surface Finish | Hot Dipped Galvanised |
| Colour | Silver |
| Lights | LED ADR Light |
| Axle | 40mm Solid |
| ATM | 750kg |
| Tare Mass | 255kg |
| Jockey Wheel | 6” Swivel |
| Fully Weld | Yes |
| Checker Plate | Full 2.5mm |
| Tilt body | Yes |
| Side | 300mm 2.5mm Fold Up |
| Cage | 600mm 30x30mm |
| Suspension | 5 leaf |
| Cross Beam | 50x50x3mm |
| Wheel & Tyre | 185R14C Light Truck |
| Brake | No Brake |
| Warranty | 24 Months Structural |

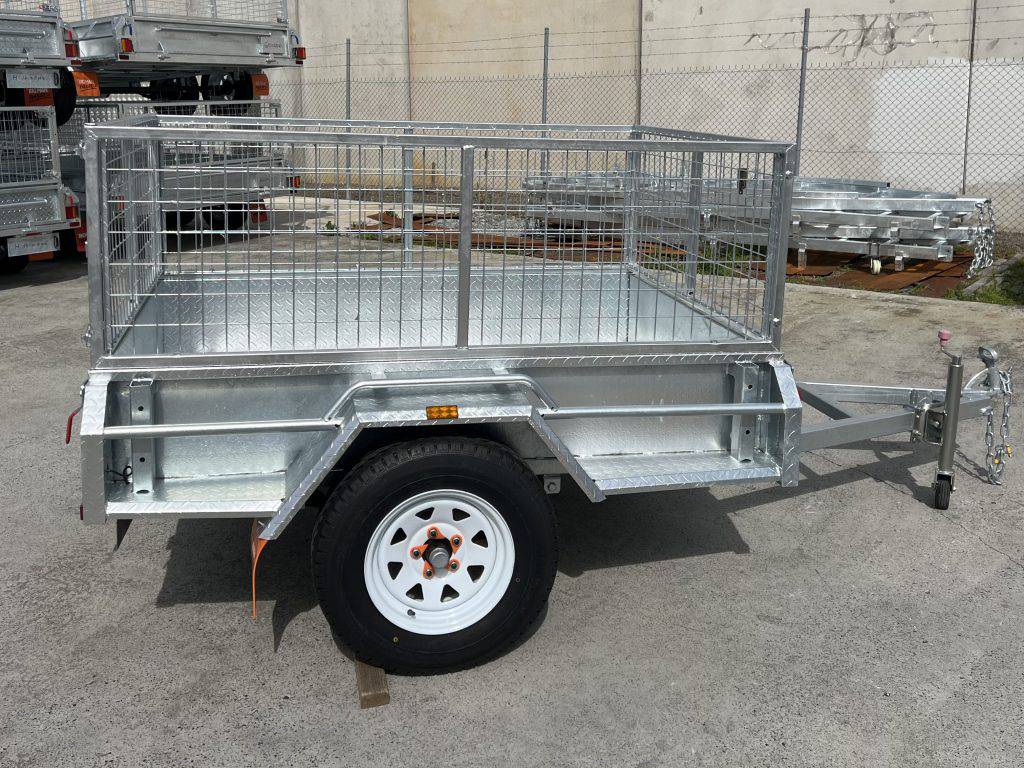

BT74M
Information:
7×4 Cage Trailer
Our 7×4 Cage Trailer strikes the perfect balance between size and utility. Ideal for both personal and commercial use, this trailer boasts extra length, accommodating larger items without compromising on width. As a premier provider of single-axle trailers, every Warrnambool Trailers comes with a guarantee of quality and durability. Hot-dipped galvanisation, a 24-month warranty, and a removable 600mm cage are just a few features that make this trailer a stand-out option for home and professional use alike.
Options :
- Full body hot-dipped galvanised (including inside the rail)
- 24 months structural warranty
- Free jockey wheel
- Brand new 14” Sunraysia rim and light truck tyre
- Removable 600mm Cage
- Fully weld body
- The Front & rear doors open
- Checker plate floor
- 1200mm drawbar
- Wheel nuts indicator included
Specifications :
| Item Number | BT74M |
| Trailer Size | 7’ x 4’ |
| Drawbar | 70x50x3mm |
| Internal Size | 2100mm x 1220mm |
| Surface Finish | Hot Dipped Galvanised |
| Colour | Silver |
| Lights | LED ADR Light |
| Axle | 40mm Solid |
| ATM | 750kg |
| Tare Mass | 292kg |
| Jockey Wheel | 6” Swivel |
| Fully Weld | Yes |
| Checker Plate | Full 2.5mm |
| Tilt body | Yes |
| Side | 300mm 2.5mm Fold Up |
| Cage | 600mm 30x30mm |
| Suspension | 5 leaf |
| Cross Beam | 50x50x3mm |
| Wheel & Tyre | 185R14C Light Truck |
| Brake | No Brake |
| Warranty | 24 Months Structural |

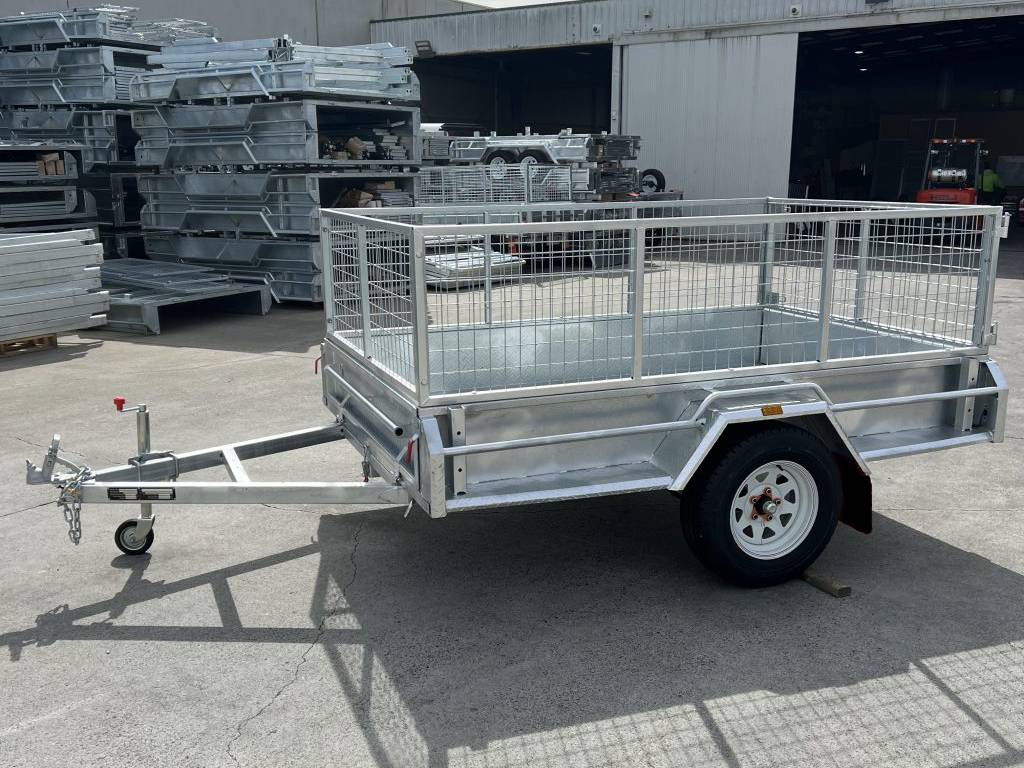

BT75M
Information:
7×5 Cage Trailer
The 7×5 single axle trailer is a popular size by our customers, as it has a decent-sized inner box for your everyday duties and handles your everyday duties like an absolute breeze.
When it comes to heavy-duty trailers, few are more popular and resilient than the 7×5 single axle trailer from Warrnambool Trailers. Providing a perfect balance between spaciousness and manoeuvrability, the 7×5 single axle trailer is great for everyday duties. Plus, to ensure that this trailer is as durable and resistant to the elements as you need it to be, each one is hot-dip galvanised for that extra layer of protection.
Options :
- Full body hot-dipped galvanised (including inside the rail)
- A 24-month structural warranty
- Free jockey wheel
- Brand new 14” Sunraysia rim and light truck tyre
- Removable 600mm Cage
- Fully weld body
- The Front & rear doors open
- Checker plate floor
- 1200mm drawbar
- Wheel nuts indicator included
Specifications :
| Item Number | BT75M |
| Trailer Size | 7’ x 5’ |
| Drawbar | 70x50x3mm |
| Internal Size | 2100mm x 1500mm |
| Surface Finish | Hot Dipped Galvanised |
| Colour | Silver |
| Lights | LED ADR Light |
| Axle | 40mm Solid |
| ATM | 750kg |
| Tare Mass | 310kg |
| Jockey Wheel | 6” Swivel |
| Fully Weld | Yes |
| Checker Plate | Full 2.5mm |
| Tilt body | Yes |
| Side | 300mm 2.5mm Fold Up |
| Cage | 600mm 30x30mm |
| Suspension | 5 leaf |
| Cross Beam | 50x50x3mm |
| Wheel & Tyre | 185R14C Light Truck |
| Brake | No Brake |
| Warranty | 24 Months Structural |

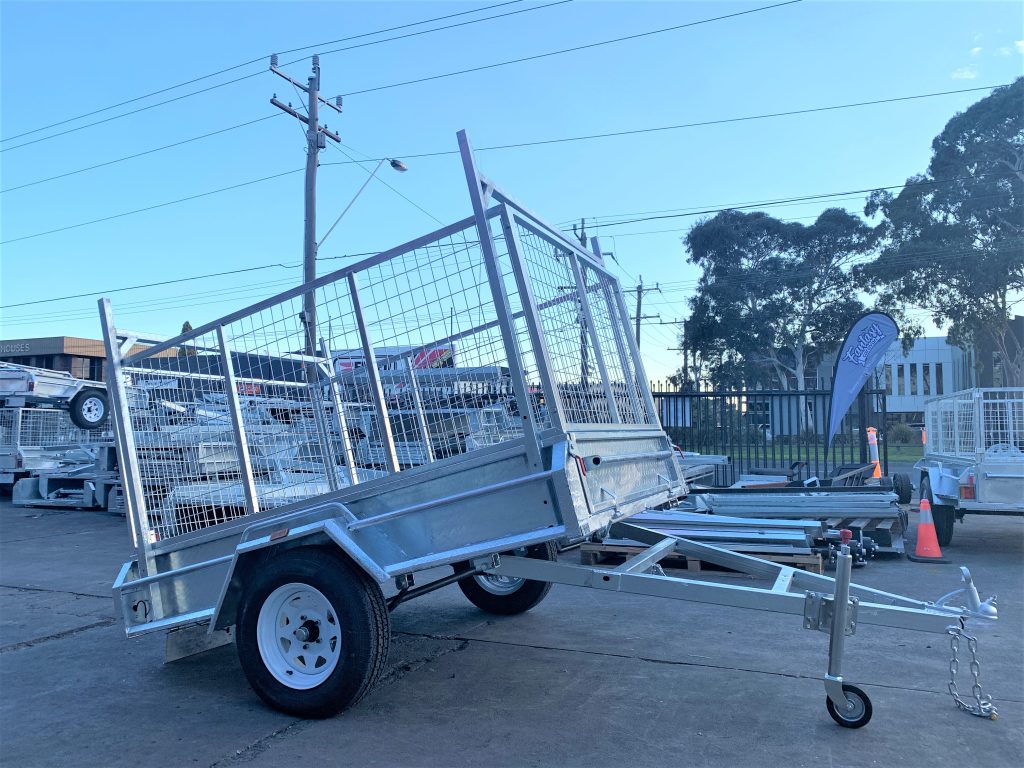

BT85M
Information:
8×5 Cage Trailer
The 8×5 Cage Trailer is our crown jewel in the single axle series. Perfect for substantial hauls, whether it’s a house move or clearing out unwanted items, this trailer is up for the task. While it’s expansive, its compact design ensures easy maneuvering. When searching for a trailer that consistently handles large loads, the 8×5 is the ideal choice. With a hot-dipped galvanised body and a 24-month warranty, it’s designed for the long haul and guaranteed to work hard for many years to come.
Options :
- Full body hot-dipped galvanised (including inside the Rail)
- 24 months structural warranty
- Free jockey wheel
- Brand new 14” Sunraysia rim and light truck tyre
- Removable 600mm Cage
- Fully weld body
- The Front & rear doors open
- Checker plate floor
- 1200mm drawbar
- Wheel nuts indicator included
Specifications :
| Item Number | BT85W |
| Trailer Size | 8’ x 5’ |
| Drawbar | 70x50x3mm |
| Internal Size | 2360mm x 1500mm |
| Surface Finish | Hot Dipped Galvanised |
| Colour | Silver |
| Lights | LED ADR Light |
| Axle | 40mm Solid |
| ATM | 750kg |
| Tare Mass | 340kg |
| Jockey Wheel | 6” Swivel |
| Fully Weld | Yes |
| Checker Plate | Full 2.5mm |
| Tilt body | Yes |
| Side | 300mm 2.5mm Fold Up |
| Cage | 600mm 30x30mm |
| Suspension | 5 leaf |
| Cross Beam | 50x50x3mm |
| Wheel & Tyre | 185R14C Light Truck |
| Brake | No Brake |
| Warranty | 24 Months Structural |

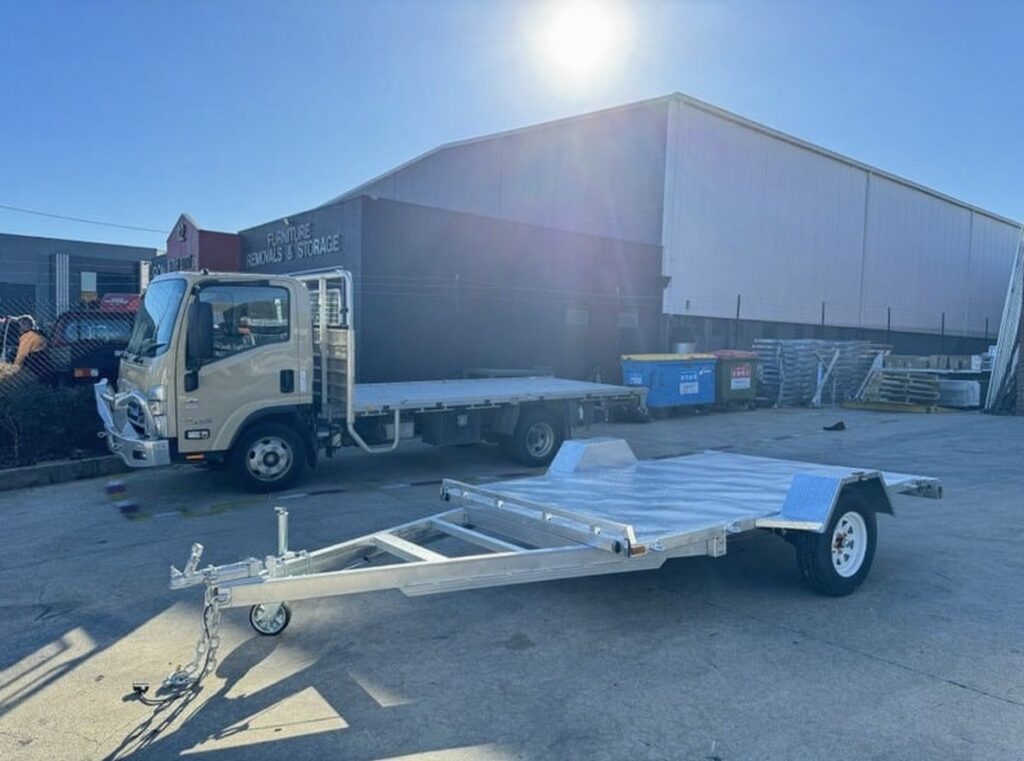

ATV106
Information:
10×6 ATV Flat Top Trailer
Tough, reliable, and built for adventure, the 10×6 ATV flat top trailer is your ideal partner for outdoor work, rural living, and weekend getaways. Engineered for transporting ATVs, tools, firewood, and gear across all terrains, it offers a perfect balance of load capacity, control, and durability. With a 1400kg ATM and mechanical brakes—no electrics required—it ensures safe, confident towing. The fully hot-dipped galvanised body resists rust inside and out, while 14” Sunraysia rims with light truck tyres provide strong traction on and off-road. A checker plate floor, rear ramp tailgate, and reinforced chassis make it highly functional and rugged. Backed by a 24-month structural warranty and including a free jockey wheel, this trailer is built to handle Australia’s toughest conditions.
Options :
- Full body hot dipped galvanised (including inside the Rail)
- 24 months structural warranty
- Free jockey wheel
- Brand new 14” Sunraysia rim and light truck tyre
- 1500mm long, 350mm wide heavy-duty ramp
- Fully weld body
- Checker plate floor
- 1800mm drawbar
- Wheel nuts indicator included
Specifications :
| Item Number | ATV106 |
| Trailer Size | 10’ x 6’ |
| Drawbar | 100x50x4mm |
| Internal Size | 3000mm x 1830mm |
| Surface Finish | Hot Dipped Galvanised |
| Colour | Silver |
| Lights | LED ADR Light |
| Axle | 50mm Solid Square |
| ATM | 1400kg |
| Tare Mass | 450kg |
| Jockey Wheel | 8” Swivel |
| Fully Weld | Yes |
| Checker Plate | Full 2.5mm |
| Ramp | 1500mm x 350mm ramp |
| Suspension | 7 leaf |
| Cross Beam | Front: 70x50x3mm, Rear: 50x50x3mm |
| Wheel & Tyre | 185R14C Light Truck |
| Brake | Override Mechanical Brake |
| Warranty | 24 Months Structural |
| Tie Down Points | 8 Tie Down Rings |
Warrnambool Trailers Single Axle Trailers Come With:
- Brand new 14’ Sunraysia rims
- Quality wheels & light truck tyres
- 2.5mm full-body checker plate floor
- 600mm (2ft) mesh cage
- 6′ jockey wheel
Note: Single axle box trailers (without cage) are also available.
Optional Single Axle Trailer Extras:
- Spare light truck wheel
- 900mm cage
- Small Toolbox 1200*400*400
- Medium Toolbox 1200*500*700
- Large Toolbox 1200*600*500
- Drop-down ramp
- Ladder racks
