Heavy Duty Trailers
Heavy Duty Trailers
When it’s time to take on the big jobs, you need a trailer that is up to the task. At Big Man Trailer Co, we specialize in heavy-duty trailers for all your hauling needs. Designed to handle the toughest loads and endure the harshest environments, we have several options to meet your needs, from heavy-duty tipper trailers to tool trailers, cattle trailers and flat top trailers.
Our heavy-duty trailers are built to last and are constructed with the highest quality galvanised steel, offering superior protection against rust and corrosion and ensuring their longevity and durability. Weight-rated up to 3.5T, there’s almost nothing our trailers can’t haul, from building materials and livestock to heavy machinery.
Whether you’re in construction, agriculture, or contracting or just need a trailer for personal use, we have a heavy-duty trailer for you, in both single and double-axle configurations. Whatever your needs, you can trust Big Man Trailer Co. to provide you with a heavy-duty trailer that is built to last.
Our Heavy Duty Trailers Models
FT107E
Information:
10×7 Flat Top Tandem Trailer
Versatility and good design meet in the 10×7 Flat Top Tandem Trailer. Engineered to aid in transporting oversized materials, it conveniently opens on all four sides for hassle-free loading. With an ATM of 2800KG and electric drum brakes on every wheel, this trailer promises reliability and safety at all times. Fully hot-dipped galvanised including inside the rail, it resists wear and tear from challenging conditions and weather, ensuring years of dependable performance. The robust build is accentuated with a fully welded body, and a brand new 14” Sunraysia rim paired with a light truck tyre. With removable 300mm sides, an 1800mm drawbar, and a checker plate floor, it’s prepared for heavy-duty assignments and backed by our signature 24-month structural warranty.
Options :
- Full body hot-dipped galvanised (include inside the rail)
- 24 months structural warranty
- Free jockey wheel
- Brand new 14” Sunraysia rim and light truck tyre
- Removable 300mm side
- Fully weld body
- 2800KG ATM with electric drum brakes on 4 wheels
- Checker plate floor
- 1800mm drawbar
- Wheel nuts indicator included
Specifications :
| Item Number | FT107E |
| Trailer Size | 10’ x 7’ |
| Drawbar | 100x50x4mm |
| Internal Size | 3030mm x 2120mm |
| Surface Finish | Hot Dipped Galvanised |
| Colour | Silver |
| Lights | LED ADR Light |
| Axle | 50mm Solid |
| ATM | 2800kg |
| Tare Mass | 850kg |
| Jockey Wheel | 8” Swivel |
| Fully Weld | Yes |
| Checker Plate | Full 2.5mm |
| Tilt body | No |
| Side | 300mm 2.5mm Removable |
| Suspension | 7 leaf rocker roller |
| Cross Beam | 70x50x3mm |
| Wheel & Tyre | 185R14C Light Truck |
| Brake | Electric Drum Brake |
| Warranty | 24 Months Structural |
FT107E35
Information:
3500kg Flat Top Trailer
This 3500kg Flat Top Trailer is an embodiment of design precision, offering a spacious flat platform that opens from all four sides, simplifying the transport of bulky items. Prioritizing both utility and safety, it features electric drum brakes on all wheels and a massive 3500KG ATM. Durability is unmatched with a fully welded and hot-dipped galvanised body and brand new 15” Sunraysia rims with 195 light truck tyres. It includes an 1800mm long drawbar, a removable 300mm side, and a resilient checker plate floor to withstand the challenges of working life. A convenient 2170mm long, 355mm wide ramp with a 1000kg maximum load capacity ensures easy loading and unloading and added safety and peace of mind are provided by a breakaway unit and a 24-month structural warranty.
Options :
- Full body hot dipped galvanised (including inside the Rail)
- 24 months structural warranty
- Free Heavy Duty jockey wheel
- Brand new 15” Sunraysia rim and 195 light truck tyre
- Removable 300mm side
- Fully weld body
- 3500KG ATM with 12-inch electric drum brakes on 4 wheels
- Breakaway unit fitted
- Checker plate floor
- 1800mm long drawbar
- 2170mm long 355mm wide loading ramp included (1000KG Max. load for a pair)
- Wheel nuts indicator included
Specifications :
| Item Number | FT107E35 |
| Trailer Size | 10’ x 7’ |
| Drawbar | 100x50x3mm |
| Internal Size | 3030mm x 2120mm |
| Surface Finish | Hot Dipped Galvanised |
| Colour | Silver |
| Lights | LED ADR Light |
| Axle | 50mm Solid |
| ATM | 3500kg |
| Tare Mass | 900kg |
| Jockey Wheel | 10” Swivel |
| Fully Weld | Yes |
| Checker Plate | Full 2.5mm |
| Tilt body | No |
| Side | 300mm 2.5mm Removable |
| Suspension | 9 leaf rocker roller |
| Cross Beam | 50x50x3mm |
| Wheel & Tyre | 195R15C Light Truck |
| Brake | 12 inch Electric Drum Brake |
| Warranty | 24 Months Structural |
| Extra | 2170mmx355mm loading ramp (1000KG Max. load) |
FT127HT
Information:
12×7 Tipper Trailer
Discover the prowess of our 12×7 tipper trailer, a marvel in trailer technology. Engineered to perfection, this trailer features a fully welded, hot-dipped galvanised steel frame that can hold up to the elements and the rigours of working life. With a powerful hydraulic arm, you can save your back and your time and make unloading easy. Plus, with 12-inch electric drum brakes and a breakaway unit fitted, you can rest assured that your load is safe, stable and secure. Backed by our 24-month structural warranty, the only question left to ask about this trailer is why you haven’t picked one up yet?
Options :
- Full body hot dipped galvanised (including inside rail)
- 24 months structural warranty
- Free Heavy Duty jockey wheel
- Brand new 15” Sunraysia rim and 195 light truck tyre
- Removable 450mm side and 900mm cage
- Fully weld body
- 3500KG ATM with 12-inch electric drum brakes on 4 wheels
- Breakaway unit fitted
- Checker plate floor
- 1800mm long drawbar
- 2170mm long 355mm wide loading ramp included (1000KG Max. load for a pair)
- Wheel nuts indicator included
Specifications :
| Item Number | FTHT127 |
| Trailer Size | 12’ x 7’ |
| Drawbar | 100x50x5mm |
| Internal Size | 3660mm x 2110mm |
| Surface Finish | Hot Dipped Galvanised |
| Colour | Silver |
| Lights | LED ADR Light |
| Axle | 60mm Solid |
| ATM | 3500kg |
| Tare Mass | 1770kg |
| Jockey Wheel | 10” Swivel |
| Fully Weld | Yes |
| Checker Plate | Full 2.5mm |
| Tilt body | 4 stage ram with 4000KG lifting capacity |
| Side | 450mm 2.5mm Removable |
| Suspension | 9 leaf rocker roller |
| Cross Beam | 70x50x5mm |
| Wheel & Tyre | 195R15C Light Truck |
| Brake | 12 inch Electric Drum Brake |
| Warranty | 24 Months Structural |
| Extra | 2170mmx355mm loading ramp (1000KG Max. load) |
FT127CT
Information:
12×7 Cattle Crate Trailer
The 12×7 Cattle Crate Trailer is built to transport livestock safely and securely. Designed for durability, it features a fully welded, hot-dipped galvanised steel frame, providing superior resistance against wear and corrosion. With a 3500kg ATM, electric drum brakes, and a fitted breakaway unit, it ensures stability and peace of mind when hauling heavy loads. The removable cattle crate allows for quick conversion into a standard flatbed, offering unmatched versatility for farmers and transporters. A 3-way open back door and centre divider streamline livestock handling, while the 15” Sunraysia rims with 195 light truck tyres ensure reliable performance on rugged terrain. Finished with a checker plate floor, 1800mm drawbar, and heavy-duty corner legs, this cattle crate trailer is the ideal choice for safe and efficient livestock transport.
Options :
- A full body hot-dipped galvanized finish (including inside the rail)
- A 24-month structural warranty
- A heavy-duty jockey wheel
- Brand new 15” Sunraysia rims and 195 light truck tyre
- A removable cattle crate
- A fully-welded body
- 3500kg ATM with electric drum brake
- A checker plate floor
- A 3-way open back door
- An included center divider
- A fitted breakaway unit
- 7-pin flat plug
- 1800mm drawbar
- Wheel nuts indicator included
- 4 heavy duty corner legs are included
- Ramp rails included
Specifications :
| Item Number | FT127CT |
| Trailer Size | 12’ x 7’ |
| Drawbar | 150x50x4mm |
| Internal Size | 3600mm x 2100mm |
| Surface Finish | Hot Dipped Galvanised |
| Colour | Silver |
| Lights | LED ADR Light |
| Axle | 60mm Solid axle |
| ATM | 3500kg |
| Tare Mass | 1300kg |
| Jockey Wheel | 10” Swivel |
| Fully Weld | Yes |
| Checker Plate | Full 2.5mm |
| Tilt body | No |
| Cage | 2000mm high removable cattle crate |
| Suspension | 9 leaf rocker roller |
| Cross Beam | 70x50x3mm |
| Wheel & Tyre | 195R15C Light Truck |
| Brake | 12 inch electric drum brakes |
| Warranty | 24 Months Structural |
FT12735
Information:
12×7 Flat Top Trailer
Experience the sheer power of the 12×7 flat top trailer. Merging the benefits of two trailers, this behemoth eases loading with its full flat design, opening from all four sides. With a robust 3500kg ATM, electric drum brakes on all four wheels, and a fully welded body, it stands unparalleled in its strength and sturdiness. Hot dipped galvanisation encompasses the entire body, including inside the rail, ensuring longevity. It’s further enhanced with an 1800mm drawbar, checker plate floor, removable 300mm side, and brand new 15” Sunraysia rims with light truck tyres. The 2000mm long, 300mm wide ramp makes loading a breeze, supporting up to 1000kg for a pair.
Options :
- Full body hot dipped galvanised (include inside the rail)
- 24 months structural warranty
- Free Heavy Duty jockey wheel
- Brand new 15” Sunraysia rim and 195 light truck tyre
- Removable 300mm side
- Fully weld body
- 3500KG ATM with 12-inch electric drum brakes on 4 wheels
- Breakaway unit fitted
- Checker plate floor
- 1800mm long drawbar
- 2000mm long 300mm wide loading ramp included (1000KG max. load for a pair)
- Wheel nuts indicator included
Specifications :
| Item Number | FT12735 |
| Trailer Size | 12’ x 7’ |
| Drawbar | 150x50x4mm |
| Internal Size | 3600mm x 2100mm |
| Surface Finish | Hot Dipped Galvanised |
| Colour | Silver |
| Lights | LED ADR Light |
| Axle | 60mm Solid |
| ATM | 3500kg |
| Tare Mass | 1110kg |
| Jockey Wheel | 10” Swivel |
| Fully Weld | Yes |
| Checker Plate | Full 2.5mm |
| Tilt body | No |
| Side | 300mm 2.5mm Removable with 900mm Cage |
| Suspension | 9 leaf rocker roller |
| Cross Beam | 70x50x3mm |
| Wheel & Tyre | 195R15C Light Truck |
| Brake | 12 inch Electric Drum Brake |
| Warranty | 24 Months Structural |
| Extra | 2000mmx300mm loading ramp (1000KG Max. load) |
CART
Information:

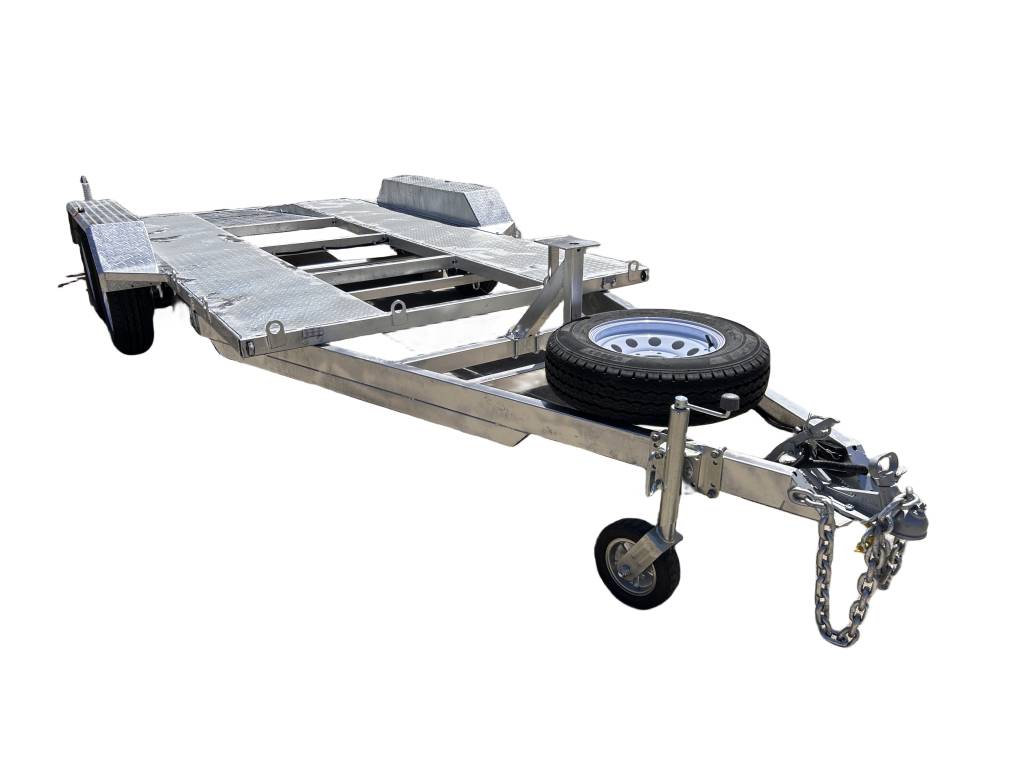

16×6.6 Beaver Tail Car Trailer
Effortlessly transport your vehicles with the 16×6.6 beaver tail car trailer, specially crafted for seamless loading and safe travel. Sporting a fully welded body, it stands sturdy on brand new 195R15C LC tyre, ensuring stability in every journey. The hot-dipped galvanised treatment extends even to the inside rail, adding to its resilience against the elements. The 1800mm drawbar promises ease during towing, while added peace of mind is afforded by a 24-month structural warranty. And for even more convenience, every trailer comes with a free 10 inch heavy duty jockey wheel
Options :
- Full body hot dipped galvanised
- 24 months structural warranty
- 10 inch heavy duty jockey wheel
- Brand new 195R15C LC tyre
- Fully Welded Heavy Duty Body
- Checker plate floor
- 1800mm drawbar
- Wheel nuts indicator included
- Tie Down Points All Around
- 1845mm long 350mm wide Long Heavy Duty Loading Ramps(2600KG Max. load for a pair)
Specifications :
| Item Number | CART |
| Trailer Size | 16 x 6.6 |
| Drawbar | 100x50x5mm |
| Surface Finish | Hot Dipped Galvanised |
| Colour | Silver |
| Lights | LED ADR Light |
| Axle | 60mm Solid |
| ATM | 3500kg |
| Tare Mass | 1180kg |
| Jockey Wheel | 10” Swivel |
| Fully Weld | Yes |
| Checker Plate | Full 3mm |
| Deck Size | 4784mm x 2000mm |
| Suspension | 9 leaf |
| Cross Beam | 50x50x3mm |
| Wheel & Tyre | 195R15C LC tyre |
| Brake | 12 inch Electric Drum Brake |
| Warranty | 24 Months Structural |
All Warrnambool Trailers Heavy Duty Trailers Come With:
Full body hot dipped galvanised coating (incl. inside rail)
Between 12 and 24 months’ warranty
Free jockey wheel
Brand new Sunraysia rims and light truck tyre
Fully welded body
Checker plate floor
Optional Heavy Duty Trailer Extras:
Light Truck Spare Wheel
VIC 12 months Registration
At Warrnambool Trailers, we understand that every customer’s needs are different. Get in touch with us for a quote and to check current availability — our experienced team will help you find the right trailer to suit your requirements.
